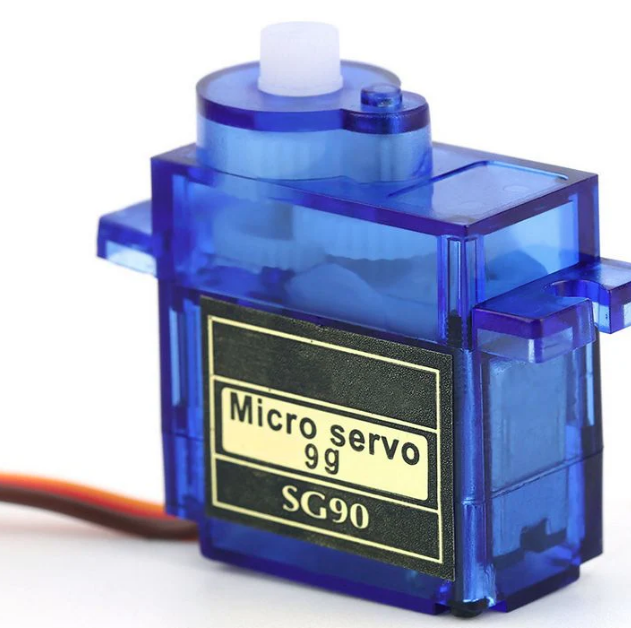

Servo Micro 9g

Description

SG90 9G micro servo motor for remote control helicopters, micro robot, robot arm and boats. Fit for ALL kinds of R/C Toys and also make electronics DIY compatible with Arduino, Raspberry Pi

Interface Type: Compatible with JR & FUTABA interface. Running Speed (at no load): 0.09 ± 0.01 sec/60°(4.8V ) 0.08 ± 0.01 sec/60°(6V). Running angle: 180 degree
Stall Torque (4.8V): 17.5oz /in (1kg/cm). Dead band setting: 5 ms

Amplifier Type: Analog controller. Operating Voltage: 4.8V～6.0V
Please Note: The starting current of the motor should be greater than 1A

Wire Layout:
Electrical Specification (Function of the Performance): Operating speed (at no load): 0.09±0.01 sec/60°(4.8V ) 0.08±0.01 sec/60°(6V)
Running current (at no load): 400±30mA (4.8V ) 500±30mA(6V)
Stall torque (at locked): 2.0±0.20kg·cm (4.8V ) 2.2±0.20kg·cm(6V)
Stall current (at locked): 1300±40mA (4.8V ) 1600±50mA(6v)
Idle current (at stopped): 6±1mA (4.8V ) 6±1mA(6v)
Running life(at no load): >350000 Turns(4.8V ) >320000 Turns(4.8V )
