Description
Note
Due to this BMS is not properly compatible with Relay and Inverter, occasionally it warns “Current sensor abnormal” or the current is not accurate when the BMS connected to Relay or Inverter, please ignore it
if you really care about it, please do not purchase, otherwise we will not accept any refund, Thanks!
Description

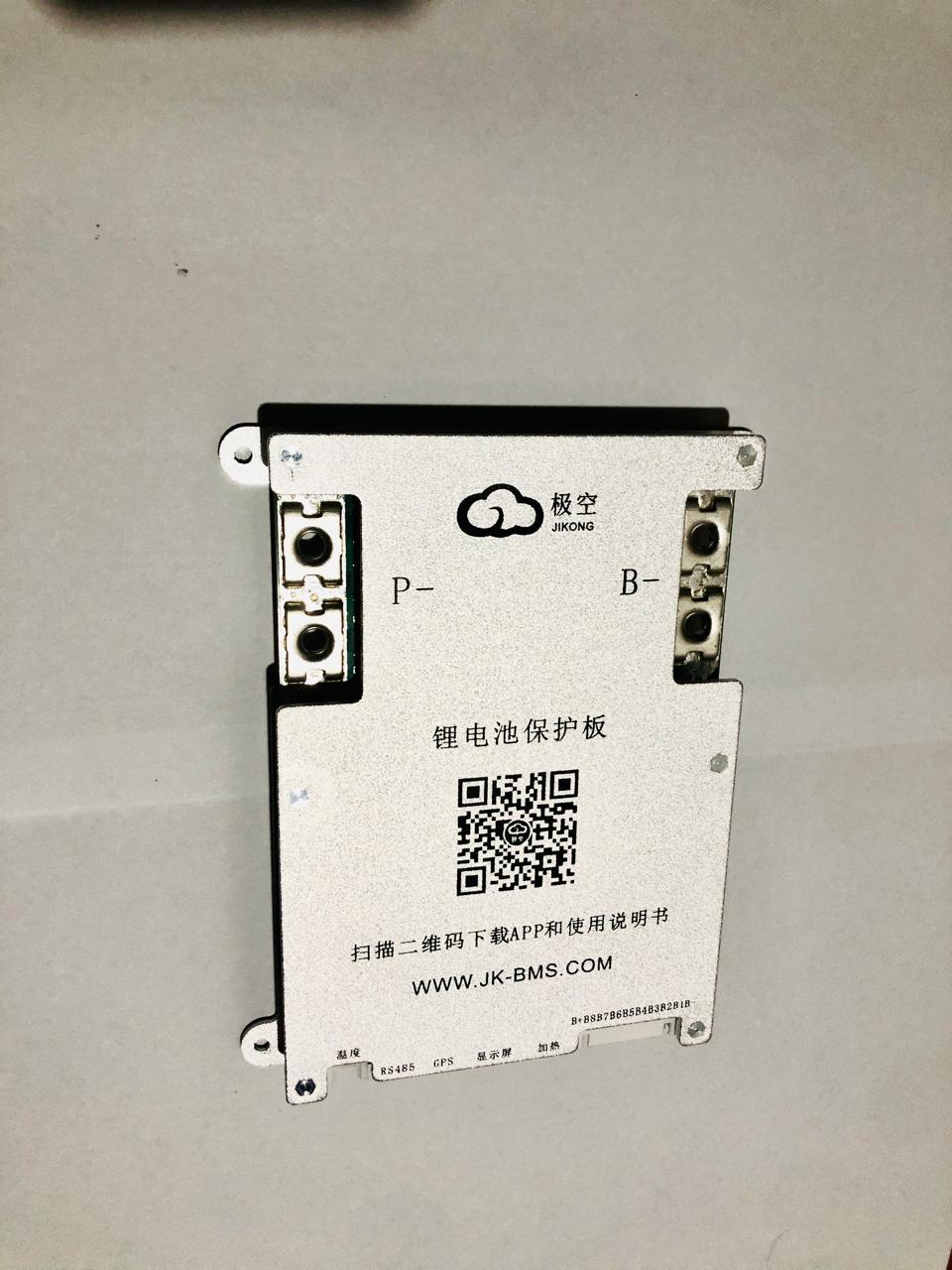

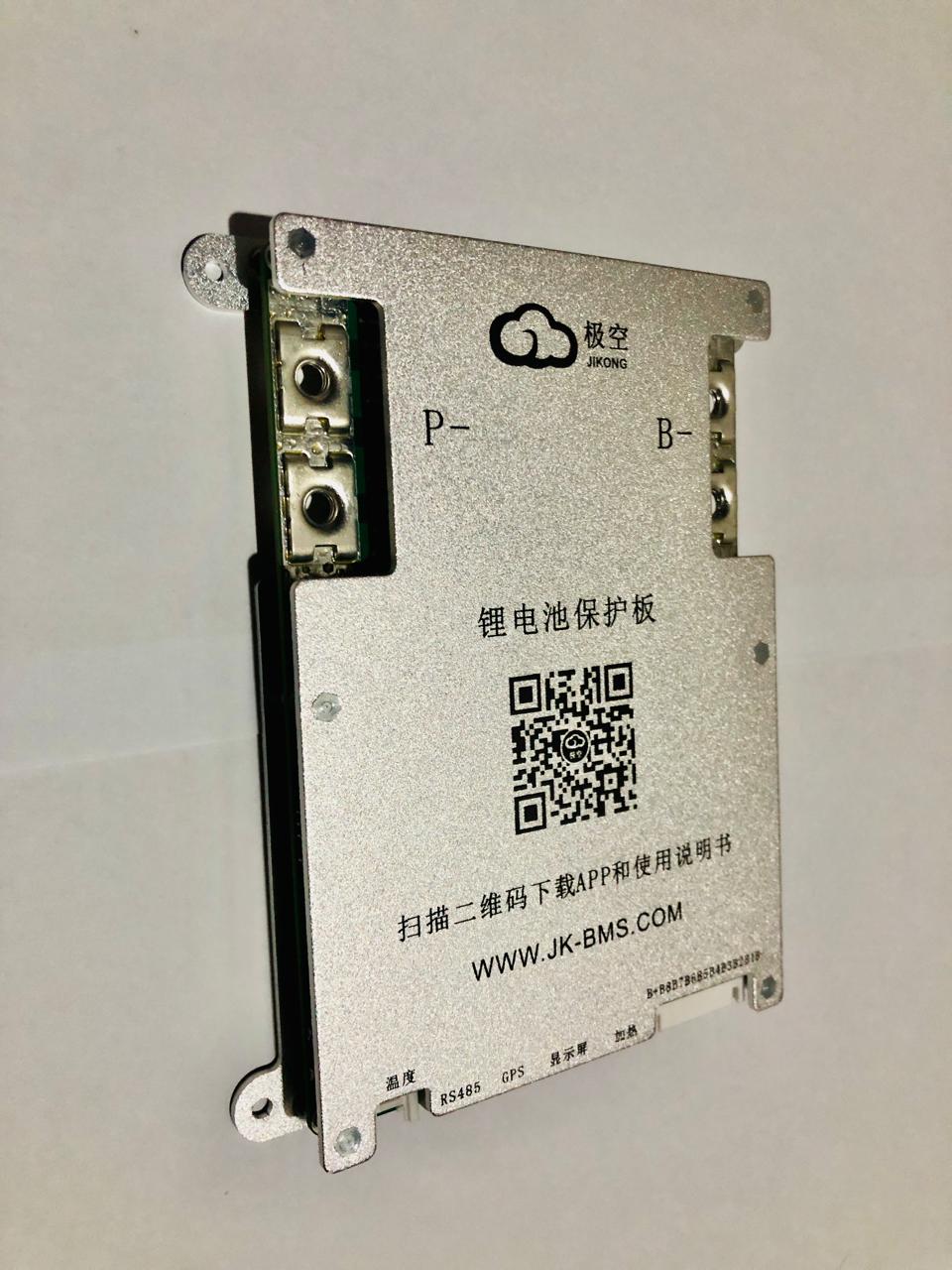

This is an Active BMS, it supports 3S-8S of Li ion and 4S-8S of LiFePo4
200A continuous current,
It also has 1A active equalization current
It can set up the equalization voltage and the charge & discharge protection parameter through APP,
It can display the single series of battery voltage
After connected the BMS, please use the power supply which is 5v greater than battery voltage to activate it
Product character
1.Active balance functionality, no need to lose the battery capacity to balance the voltage difference of sells, raise the battery usage efficiency for 95%
2.It can be used on 4~8s li-ion/Cobalt acid lithium/Manganese acid lithium/Lithium iron battery packs
3.Constant working current is 200A
4.It has the protections of Over-charge/Over-discharge/Over-current and Short circuit etc.
Working condition
Workable temperature: -20~70℃
Notice: The 485 converter just for transfering the communication to be RS485, it can not be connected to PC directly, it needs to connect to another 485 module to connect to PC, The yellow wire is 485A , the white wire is 485B, the black wire is for GND and you don’t have to connect the black wire, We will provide you the 485 protocol after bought the 485 converter, and we don’t provide the software, if you are not the familiar with Serial Port Debugging Tool, please be careful when you want you purchase this product
Balanced way: Active equalization
Active equalization current:1A
internal resistance：1.3mΩ
Rated discharge current：200A
Maximum discharge current：250A
Overcurrent protection（Adjustable）:10-200A
Wiring method:common port
Monomer voltage range: 1V-5V
Voltage acquisition accuracy: ±5mV
Battery cell Over-charge protection voltage :1.2V-4.35V（Adjustable）
Battery cell Over-charge protection recovery voltage: 1.2V-4.35V（Adjustable）
:2-120S （Adjustable）
Battery cell Over-discharge protection voltage: 1.2V-4.35V（Adjustable）
Battery cell Over-discharge protection recovery voltage : 1.2V-4.35V（Adjustable）
