ESP32 WROOM WIFI & Bluetooth Dev Board

රු1,850.00

ESP32-C3-WROOM-02 Module with 4 MB SPI Flash
Bluetooth LE: Bluetooth 5, Bluetooth mesh
WiFi IEEE 802.11 b/g/n-compliant
ESP32-C3 embedded, 32-bit RISC-V single-coreprocessor, up to 160 MHz
384 KB ROM
400 KB SRAM (16 KB for cache)
8 KB SRAM in RTC
4 MB SPI flash
5V to 3.3V LDO
5V Power Status LED
All Available I/O Broken Out in Pin Headers
Boot Button
Reset Button
MicroUSB Connector (Power and Programming)
USB to UART Bridge
Addressable RGB LED (GPIO8)

SKU: DEV B - ESP NEW Categories: , Tags: ,

Description

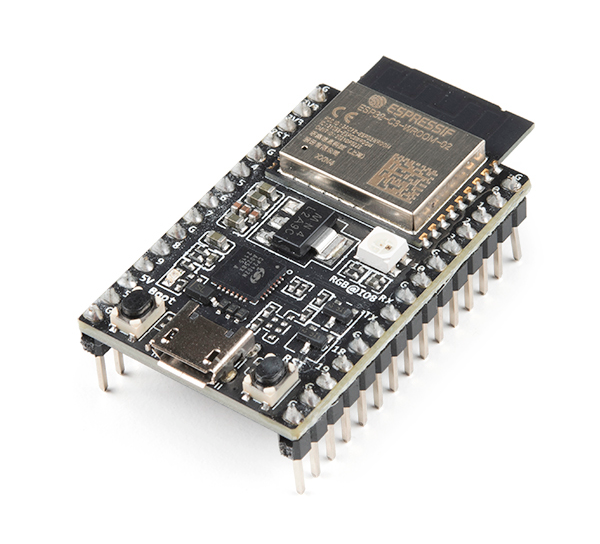

The ESP32- 38 Pin WROOM Development Board is an entry-level development board based on ESP32-C3-WROOM, a general-purpose module with 4MB SPI flash. This board integrates complete WiFi and Bluetooth LE functions.

The Espressif ESP32-C3 is the next version of the popular ESP32 Bluetooth® and WiFi enabled module. This module features a single core, RISC-V-based processor with WiFi and Bluetooth LE 5.0 radios built into the SoC. The module features a PCB antenna and castellated plated pins for surface-mount soldering. This variation has 4 MB of on-board SPI flash and is the 85 °C temperature tolerant version.
