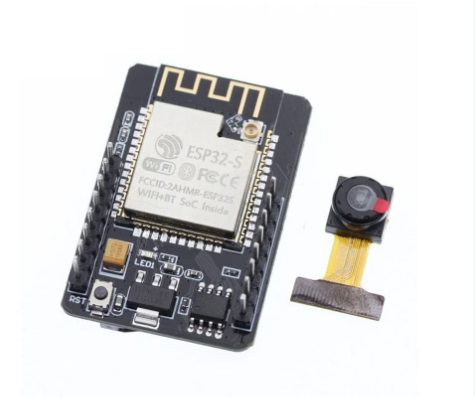

ESP32 - 2 Megapixel Camera Development Module ONLY
ESP32 - 2 Megapixel Camera Development Module ONLY - Image 2

ESP32 – 2 Megapixel Camera Development Module ONLY

රු2,150.00

Specifications

  • Wireless Module: ESP32-S WiFi 802.11 b/g/n + Bluetooth 4.2 LE module with PCB antenna, u.FL connector, 32Mbit SPI flash, 4MBit PSRAM.
  • External Storage: micro SD card slot up to 4GB.

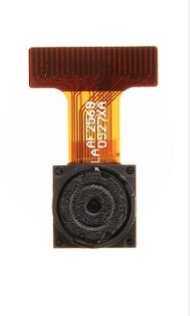

  • Camera
    • FPC connector.
    • Support for OV2640 (sold with a board) or OV7670 cameras.
    • Image Format: JPEG( OV2640 support only ), BMP, grayscale.
    • LED flashlight.
  • Expansion: 16x through-holes with UART, SPI, I2C, PWM.
  • Misc: Reset button.
  • Power Supply: 5V via pin header.
  • Power Consumption.
    • Flash LED off: 180mA @ 5V.
    • Flash LED on to maximum brightness: 310mA @ 5V.
    • Deep-sleep: 6mA @ 5V min.
    • Modem-sleep: 20mA @ 5V min.
    • Light-sleep: 6.7mA @ 5V min.
  • Dimensions (ESP32): 40 x 27 x 12 (L x W x H) mm.
  • Temperature Range: Operating: -20 ℃ ~ 85 ℃; storage: -40 ℃ ~ 90 ℃ @ < 90>
Categories: , , , ,

Description

Product Details ; Camera Development Module ONLY
  • The smallest 802.11b/g/n Wi-Fi BT SoC module.
  • Low power 32-bit CPU, can also serve the application processor.
  • Up to 160MHz clock speed, summary computing power up to 600 DMIPS.
  • Built-in 520 KB SRAM, external 4MPSRAM.
  • Supports UART/SPI/I2C/PWM/ADC/DAC.
  • Support OV2640 and OV7670 cameras, built-in flash lamp.
  • Support image WiFI upload.
  • Supports TF card.
  • Supports multiple sleep modes.
  • Embedded Lwip and FreeRTOS.
  • Supports STA/AP/STA+AP operation mode.
  • Support Smart Config/AirKiss technology.
  • Support for serial port local and remote firmware upgrades (FOTA).
