Description

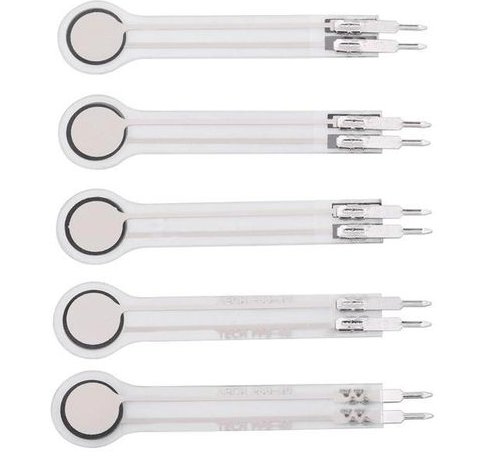

DF9-40. 1 Pcs Of , 0.5 – 20Kg to range Thin Film Pressure Sensor
DF9 – Pressure Sensor ( 1 Pcs )
රු1,350.00 – රු1,450.00
- Condition: Brand New
- Item Type: Flexible Pressure Sensor
- Material: Plastic
- Thickness: <0>
- Range: 500g – 20kg
- Lifespan: >1million times
- Initial Resistance: >10MΩ(no load)
- Test Voltage: DC 3.3V (typical)
- Response Time: <1ms>
- Restore Time: <15ms>
- Working Temperature: -20 ℃ – 60 ℃
- EMl: Not Generated
- ESD: Not Sensitive
- Length: Approx. 40mm
- Width: Approx. 5.8mm
- Tolerance: Approx. 0.2mm
- Sensing Area Inner Diameter: Approx. 7.5mm
- Sensing Area Outer Diameter: Approx. 10mm
- Pin Spacing: Approx. 2.54mm
Additional information
| Type | 500g, 10Kg, 2 Kg, 5 Kg, 20 Kg |
|---|
